Smart 4 Burner Built-In Gas BBQ With Rotisserie & Rear Infrared Burner In Stainless Steel (401WB-W)

$1,499.00
$1,499.00 $2,199.00
Save 31%
  • SKU:
    401WB-W
Ask a question Share

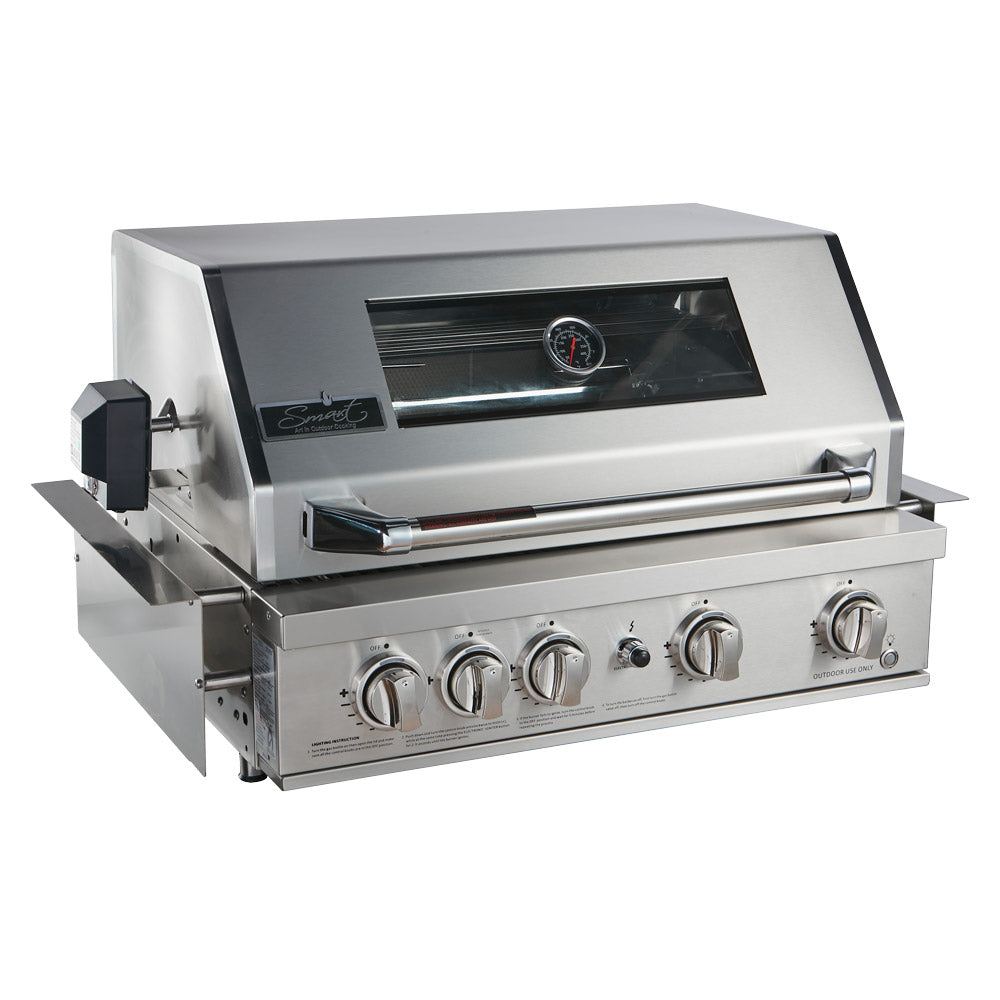

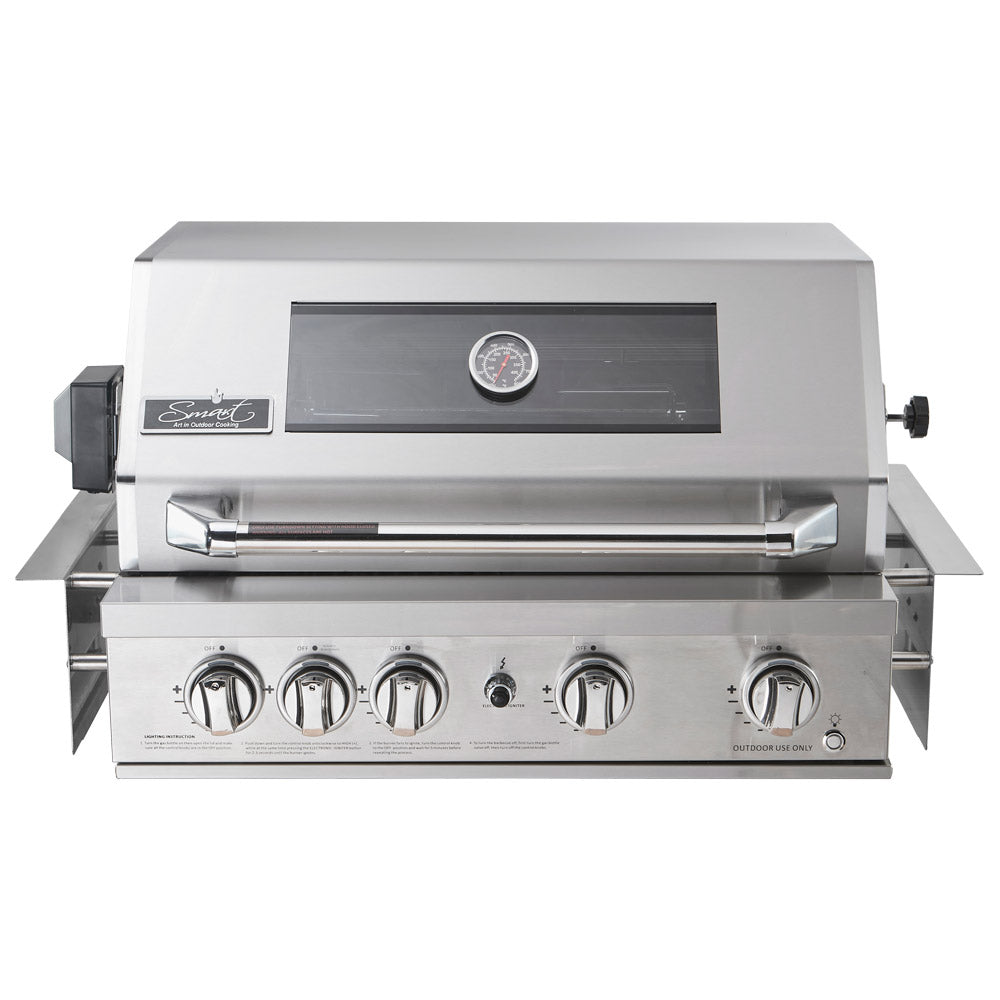

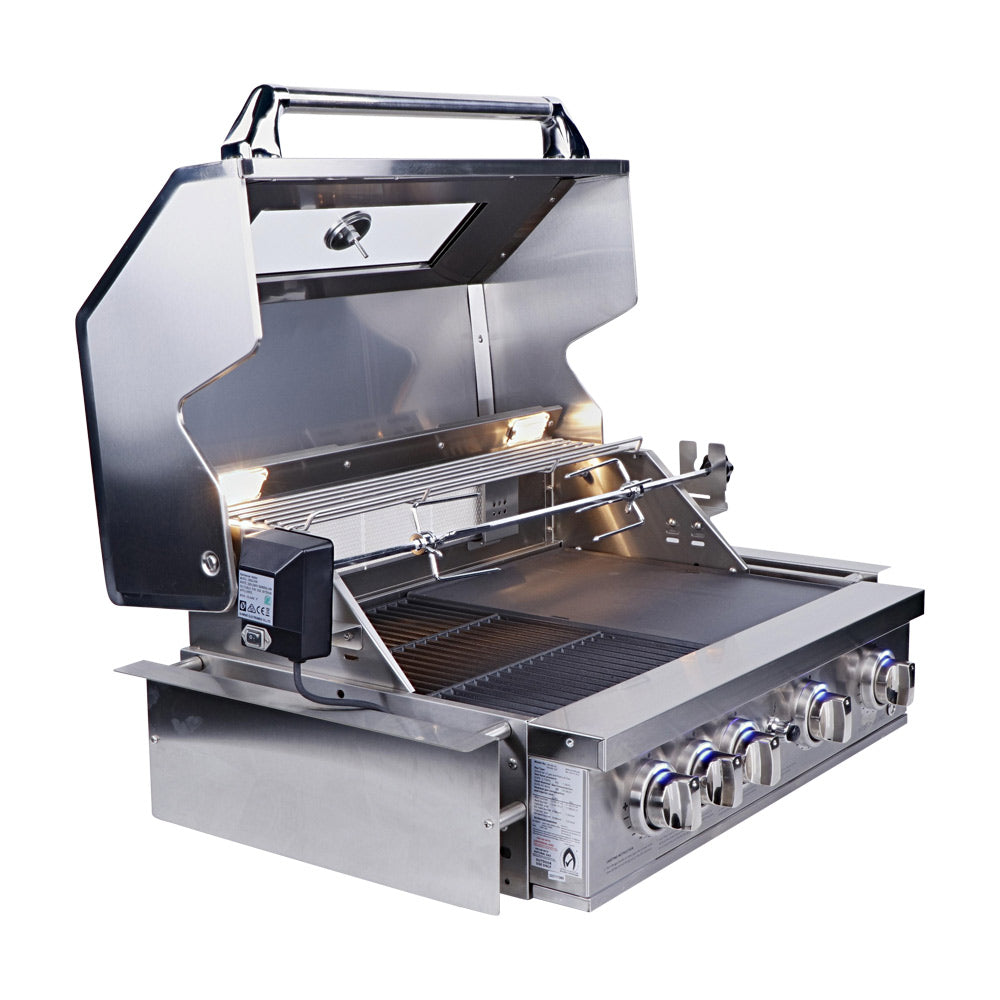

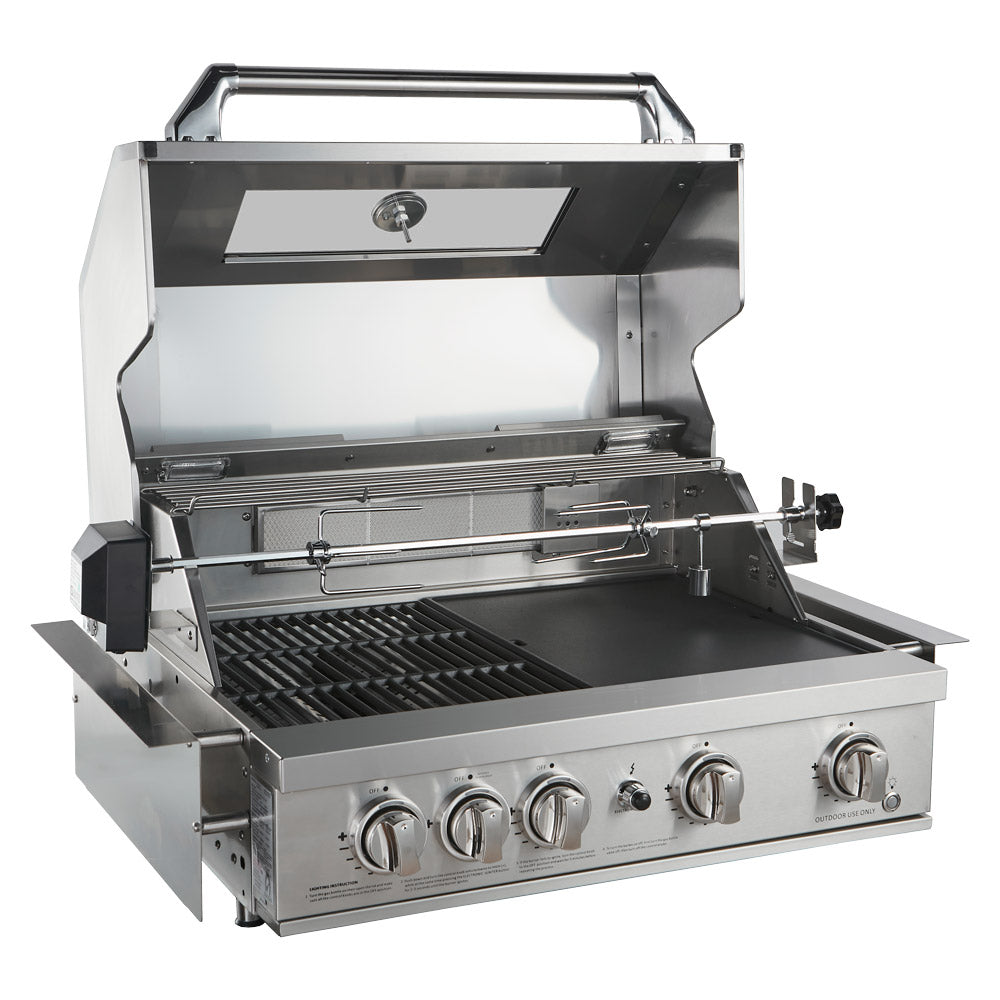

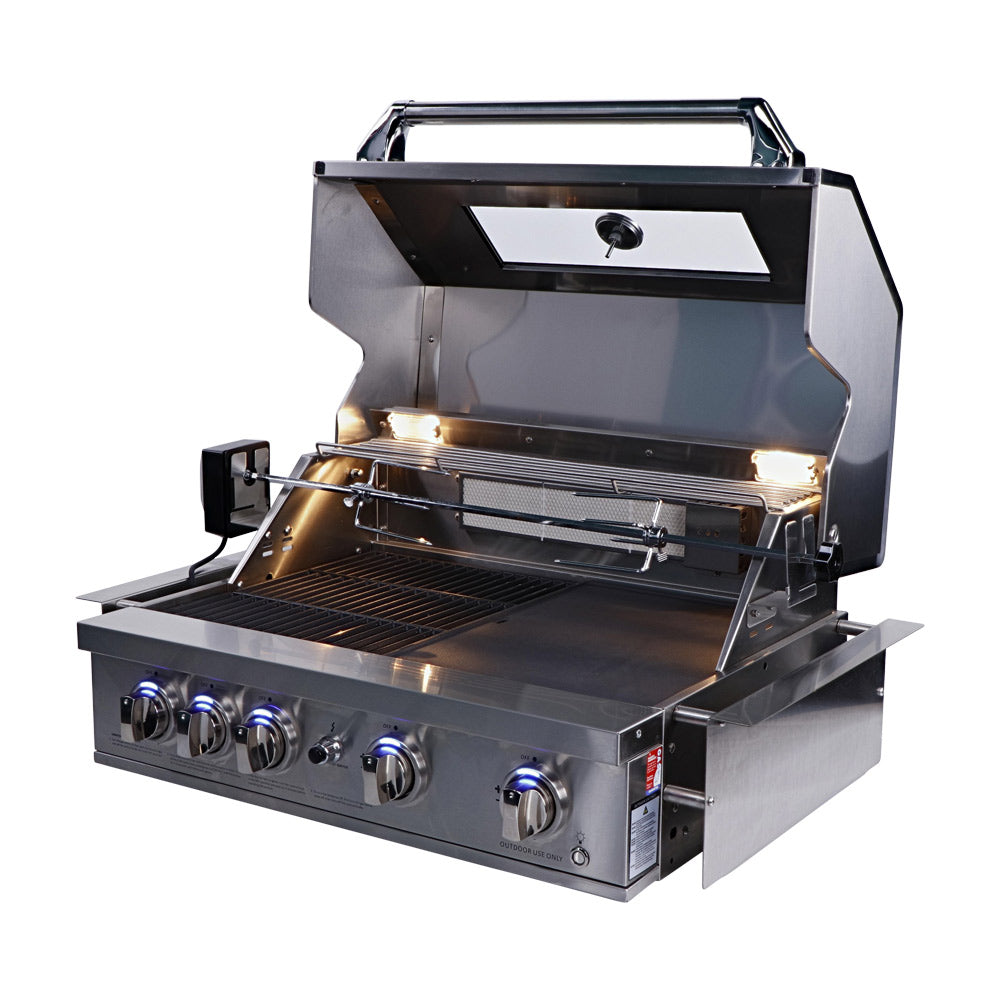

Manufactured from a high-quality 304-grade stainless steel finish with a motorised rotisserie and a rear rotisserie burner, this built-in BBQ by Smart is the ideal grilling companion for your backyard. Featuring a 4 burner grilling surface with two grill plates made from cast iron (one open and one solid) it can handle a barbecue feast of any size.

This product comes with a three-year manufacturer warranty covering any faults or defects which may occur during this period.

Product Features

Features & Benefits

  • 304 Grade Stainless Steel Finish
  • Stainless Steel Flame Tamers: Help to prevent cooking fats from dripping back onto the burners causing flare-ups, and providing a more even dispersion of heat.
  • Rear Rotisserie Burner: Infrared style cooking providing a quick, searing heat with high radiant temperatures helping to lock in flavour (one-speed setting)
  • 4 x Stainless Steel Burners: 13mj/hr gas burners provide a high-power grilling surface

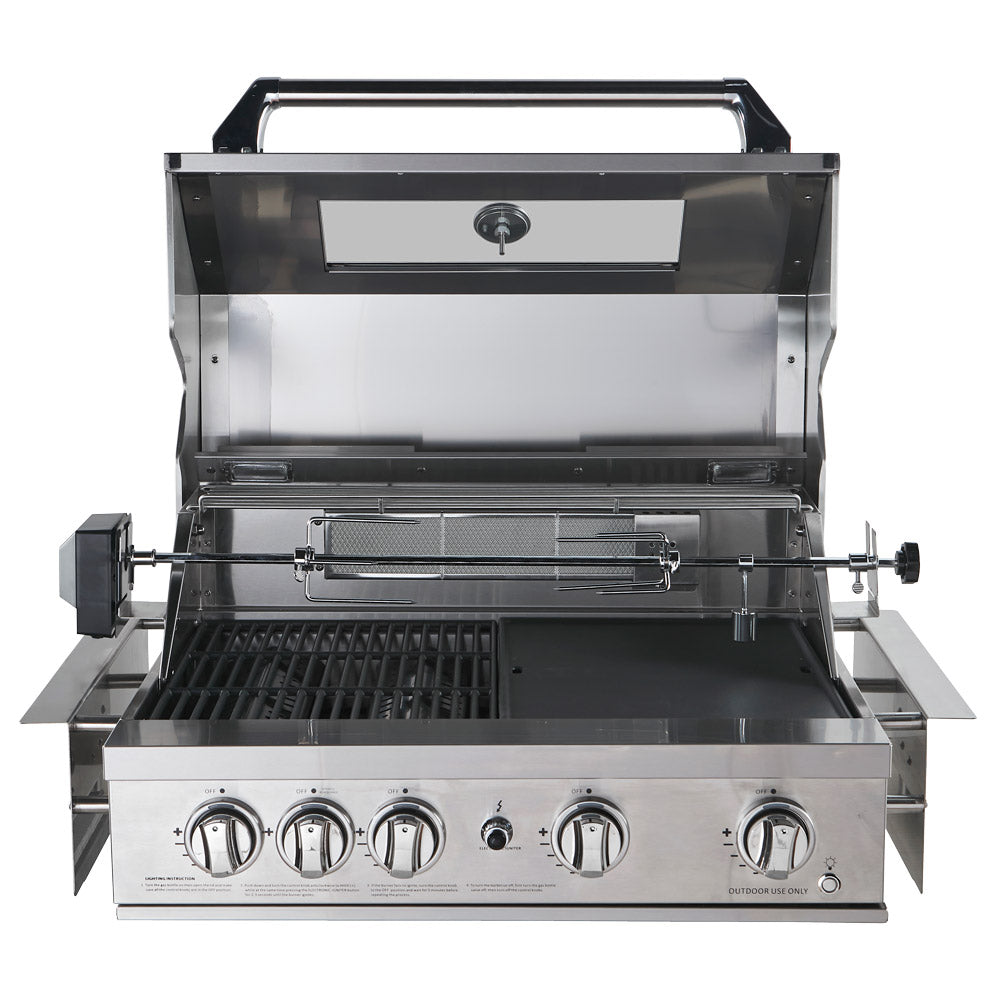

  • Cast Iron Grill Plates: Easy to clean cooking surface ideal for BBQs. Comes with one open grill plate and one flat reversible grill plate.
  • Halogen Lighting: Integrated lighting system to help provide visibility within any cooking conditions.
  • Control Knobs: Easy-to-use control knobs featuring LED lighting for visibility
  • Electronic Ignition: Burners will light easily with minimal fuss.

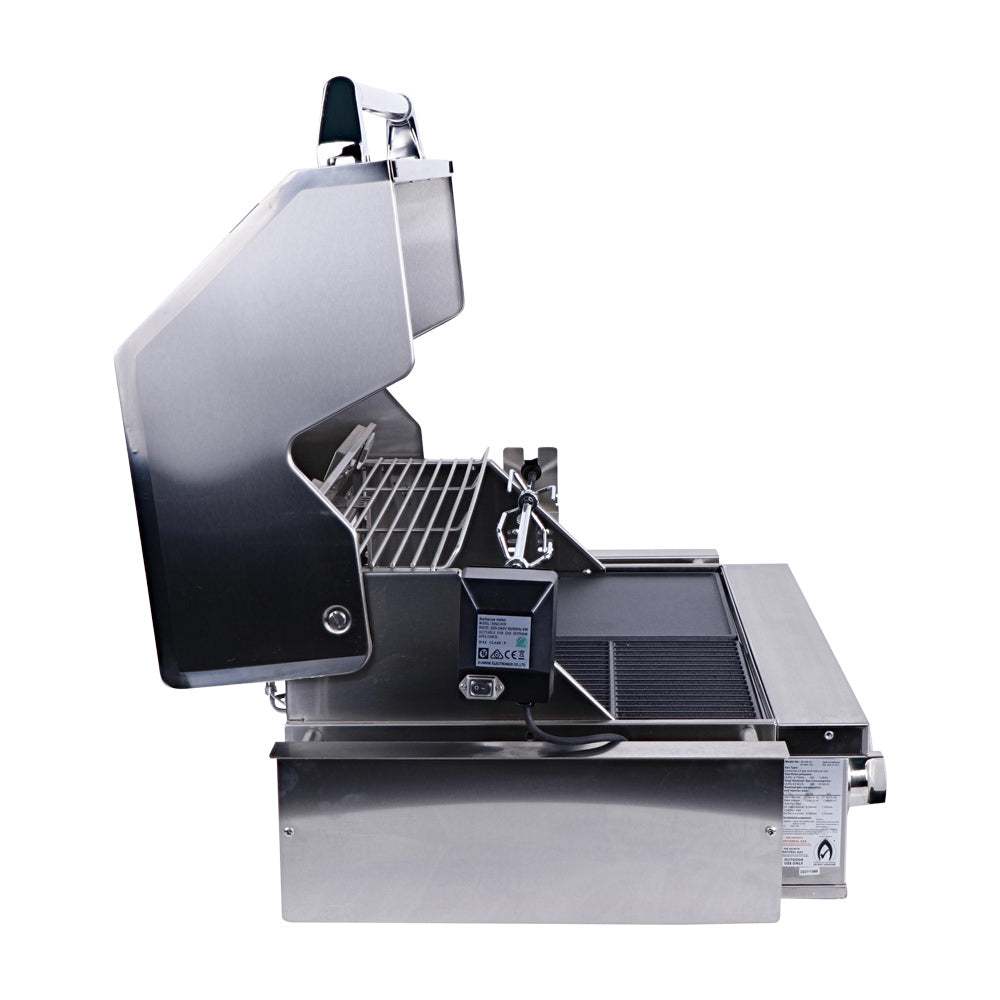

  • Motorised Rotisserie: Plugs into a standard 10 AMP PowerPoint and includes all accessories including rotisserie arm and forks.
  • Viewing Window: Provides visibility when using the rotisserie
  • Double Skinned Hood: Offering excellent insulation for cooking with the hood closed.
  • Integrated Thermostat: Providing easy control of temperatures within the hood of BBQ when roasting cuts of meat.
  • FREE Weather-Proof Cover: to provide additional protection from the elements
  • Stainless Steel Warming Rack: for resting cuts of meat after cooking
  • Drip Tray: Located at the front to provide easy cleaning and management of fats and oils from cooking. This tray can be easily removed for cleaning and washing.
Product Specifications

Technical Specifications

  • Product Code: 401WB-W
  • Tube Burners: 304 Grade Stainless Steel
  • Flame Tamers: 304 Grade Stainless Steel
  • Total Gas Consumption (LPG): 65mj/hr (13mj/hr for each burner & rear burner)
  • Total Gas Consumption (Natural): 55 mj/hr (11mj/hr each burner & rear burner)
  • Motorised Rotisserie: Yes (Rated to Maximum 7kg)
  • Lighting: Under Hood LED Lighting & LED Control Knobs
  • Ignition: One-Hand Push Electric Ignition
  • Grill Plate Materials: Cast Iron
  • Total Cooking Area: (w) 710mm x (d) 455mm
Installation Dimensions

Product & Cut Out Dimensions

Do not cut your cabinetry or benchtops until you have physically received your Smart BBQ to ensure optimum results. The cut out dimensions provided on this sheet are indicative only as requirements for each install will vary. Upon receiving your Smart BBQ, individually measure the relevant sections to ensure optimum fittings.

Ensure minimum 180mm rear clearance behind the BBQ to any wall to allow for the BBQ hood to open. Any installation must allow a minimum 30mm clearance below the BBQ to allow for ventilation and to stop build-up of heat which can damage your cabinetry and BBQ.

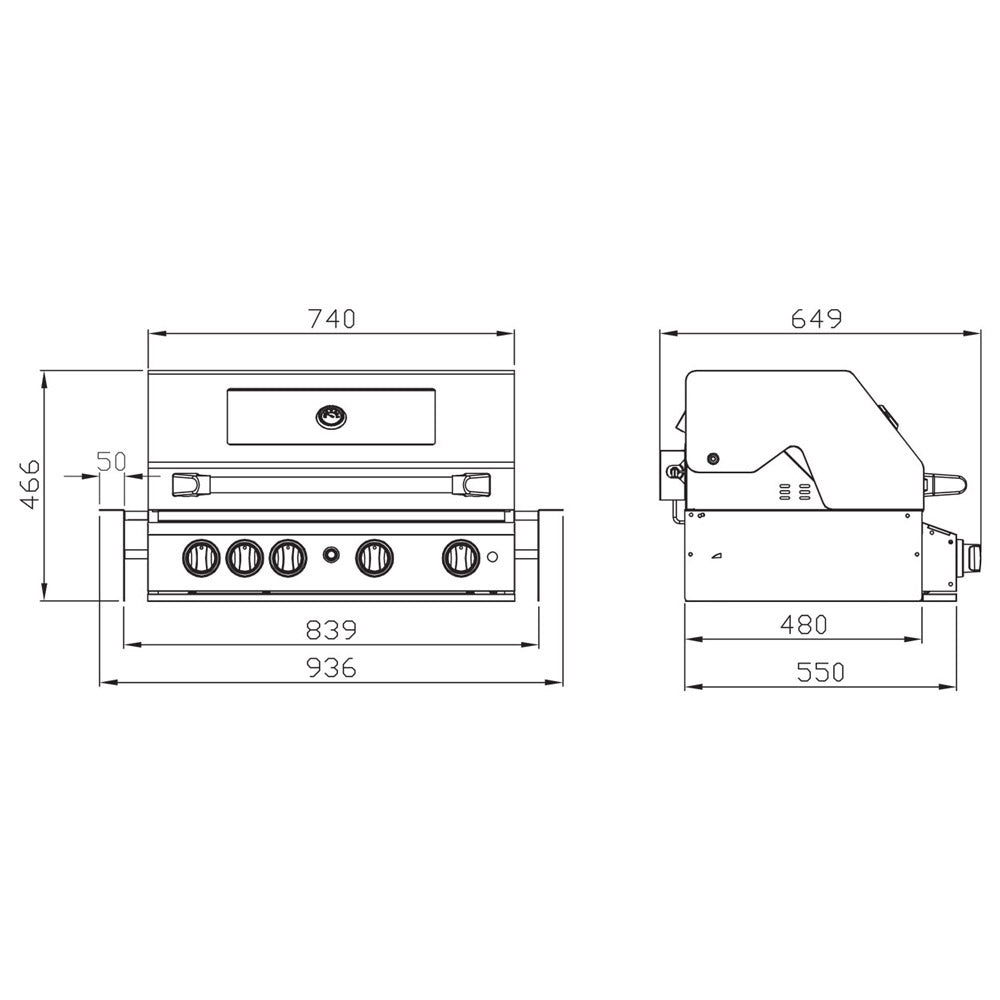

  • Product Dimensions (With No Brackets Attached): (w) 740mm x (d) 649mm x (h) 466mm (Product dimensions will vary for different install methods)

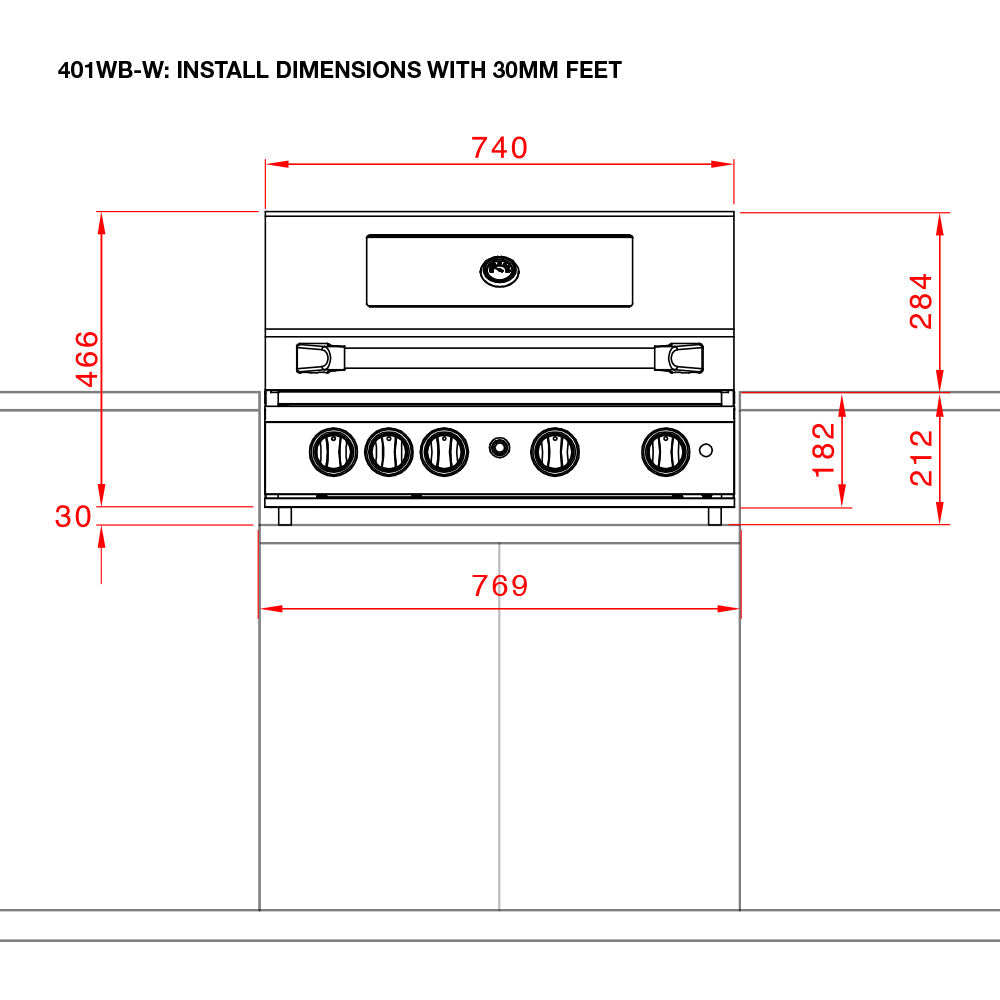

  • Recommended Cut Out Dimensions With 30mm Feet: (w) 769mm x (h) 212mm x (d) 530mm

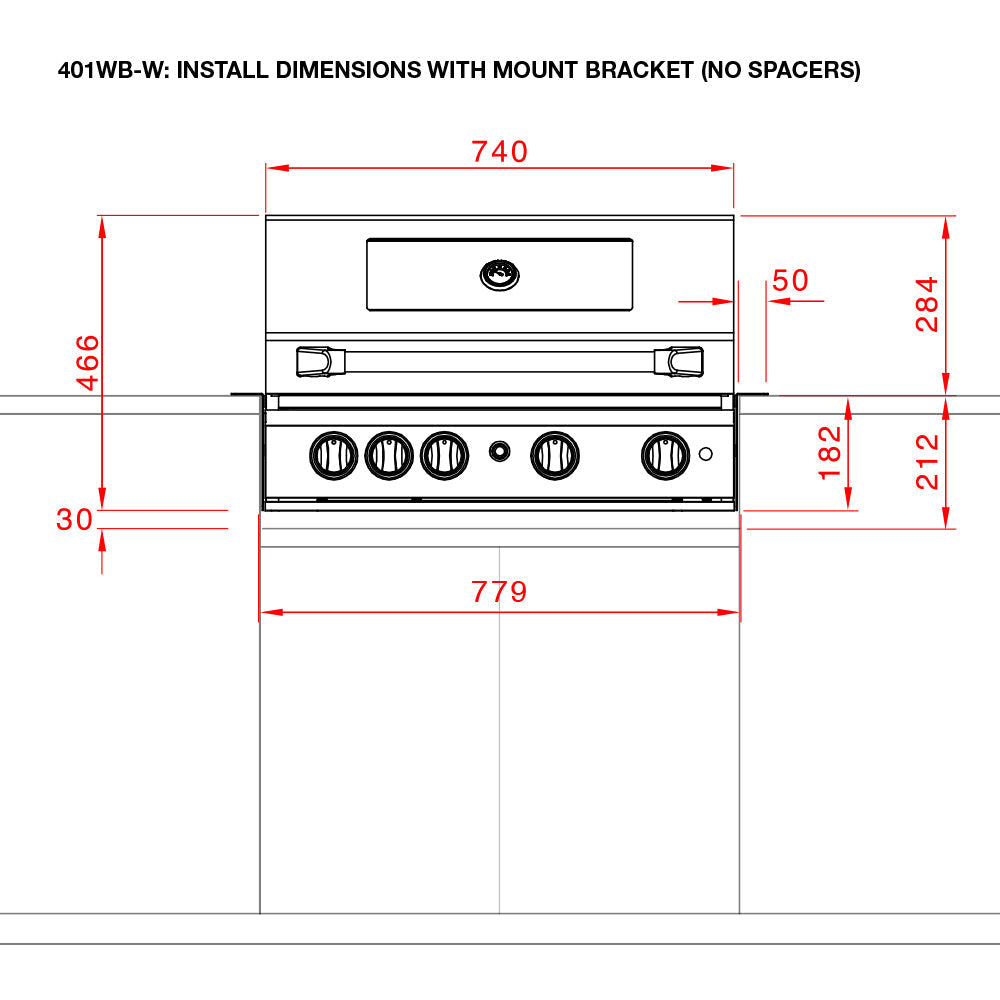

  • Recommended Cut Out Dimensions With Side Mount Bracket (No Spacers): (w) 779mm x (h) 212mm x (d) 530mm

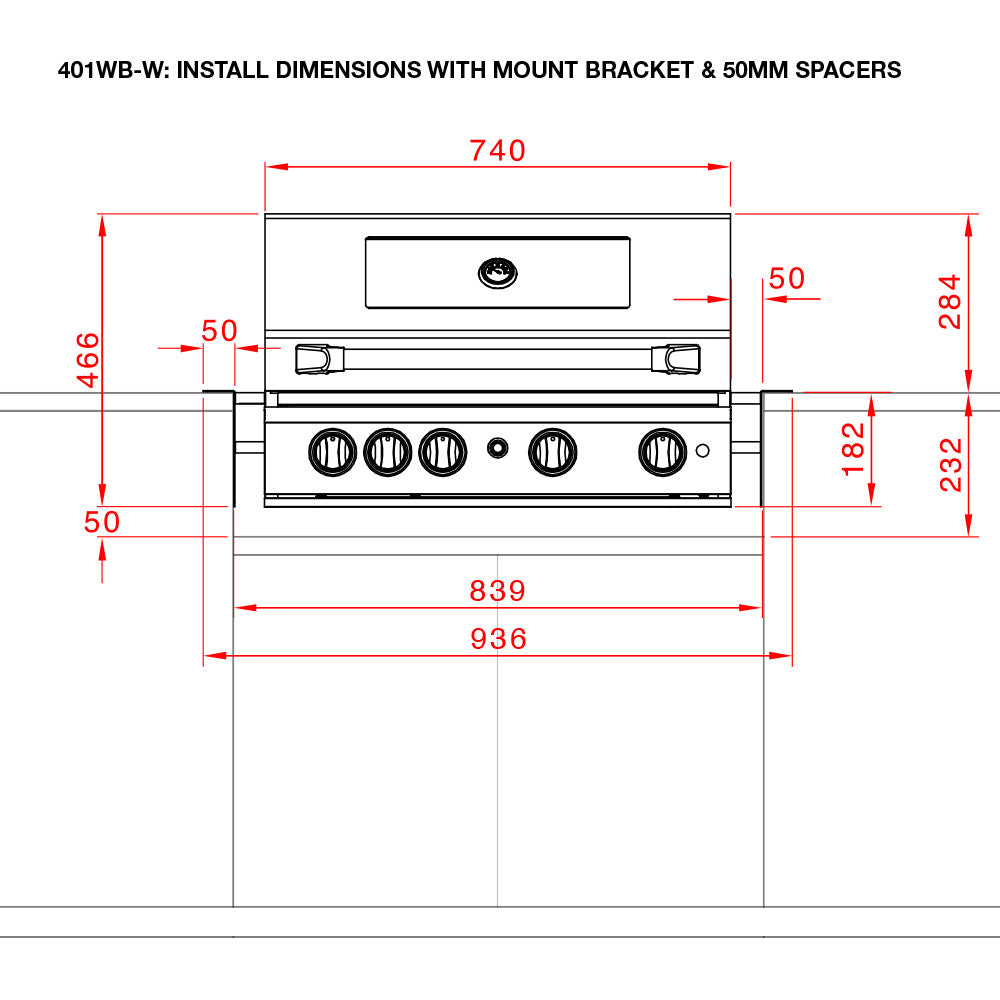

  • Recommended Cut Out Dimensions With Side Mount Bracket & 50mm Spacers: (w) 855mm x (h) 232mm x (d) 530mm
Gas Conversion

Natural Gas Conversion

The Smart Gas BBQ range all come ready for use with an LPG gas bottle out of the box, but can be converted to supply through your natural gas line.

This will require a natural gas conversion kit which can be purchased from retailers or directly from our website.

Our jets are universal in that you use the same jets in LPG and NG setting. What is needed is an internal adjustment to change the gas flow to use the same jets. This will need to be done by a licensed gas fitter or plumber. On how this is done, is shown in the user manual step by step.

This will need to be done by a licensed gas fitter or plumber.

Your gas fitter or plumber will remove the jets that are currently set up for LPG and do an internal adjustment to the gas flow when you want to run NG to your BBQ.

Step-by-step instructions can be found in the product manual.

Please note that our kits do not come with with a female bayonet fitting for wall connection - this will need to be supplied by your gas fitter or plumber.
