Smart 4-Burner Drop-In Gas BBQ With Slimline Hood in Stainless Steel (4000DG-SL-SS)

$2,499.00
$2,499.00 $2,999.00
Save 16%
  • SKU:
    4000DG-SL-SS
Ask a question Share

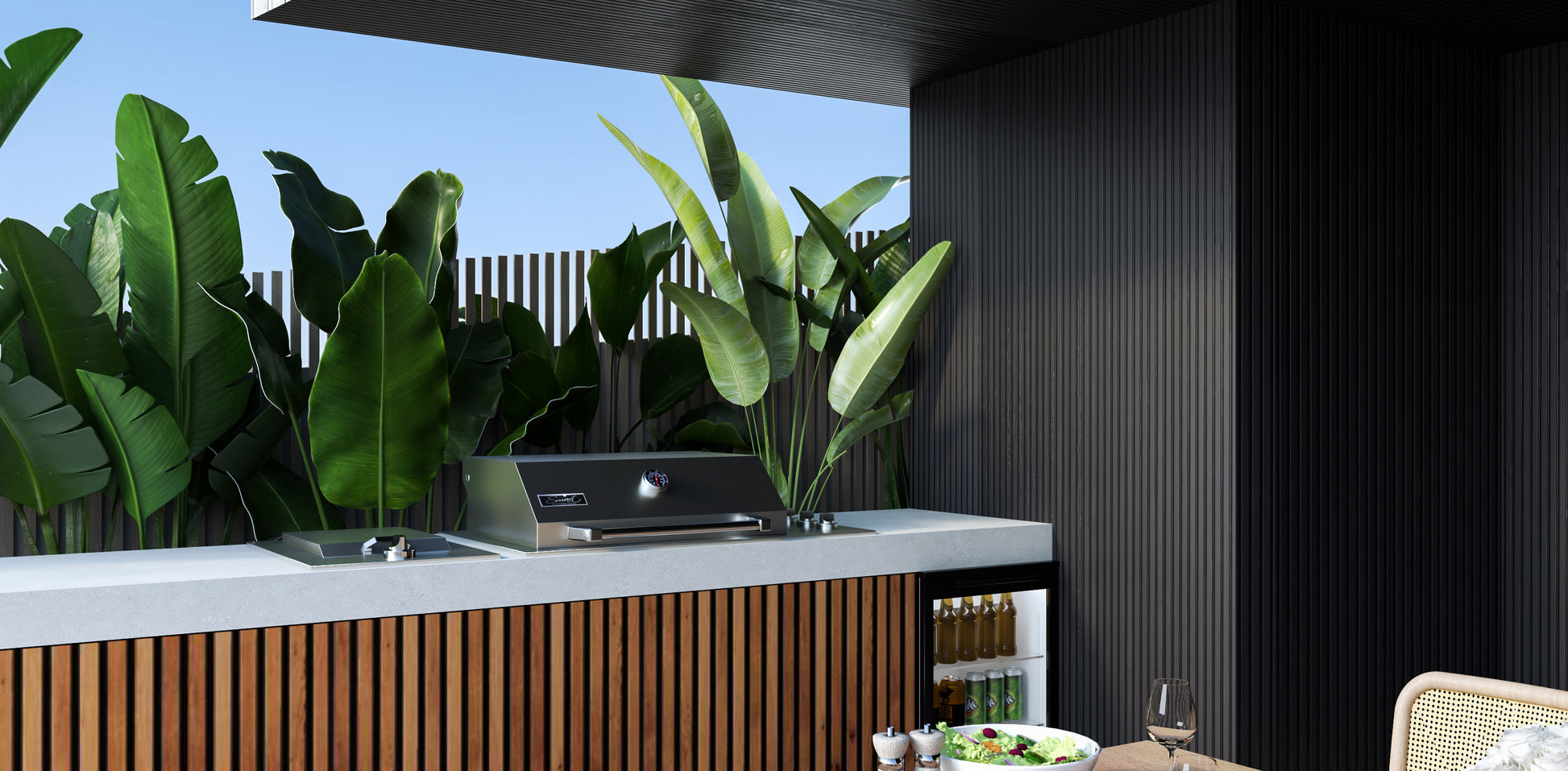

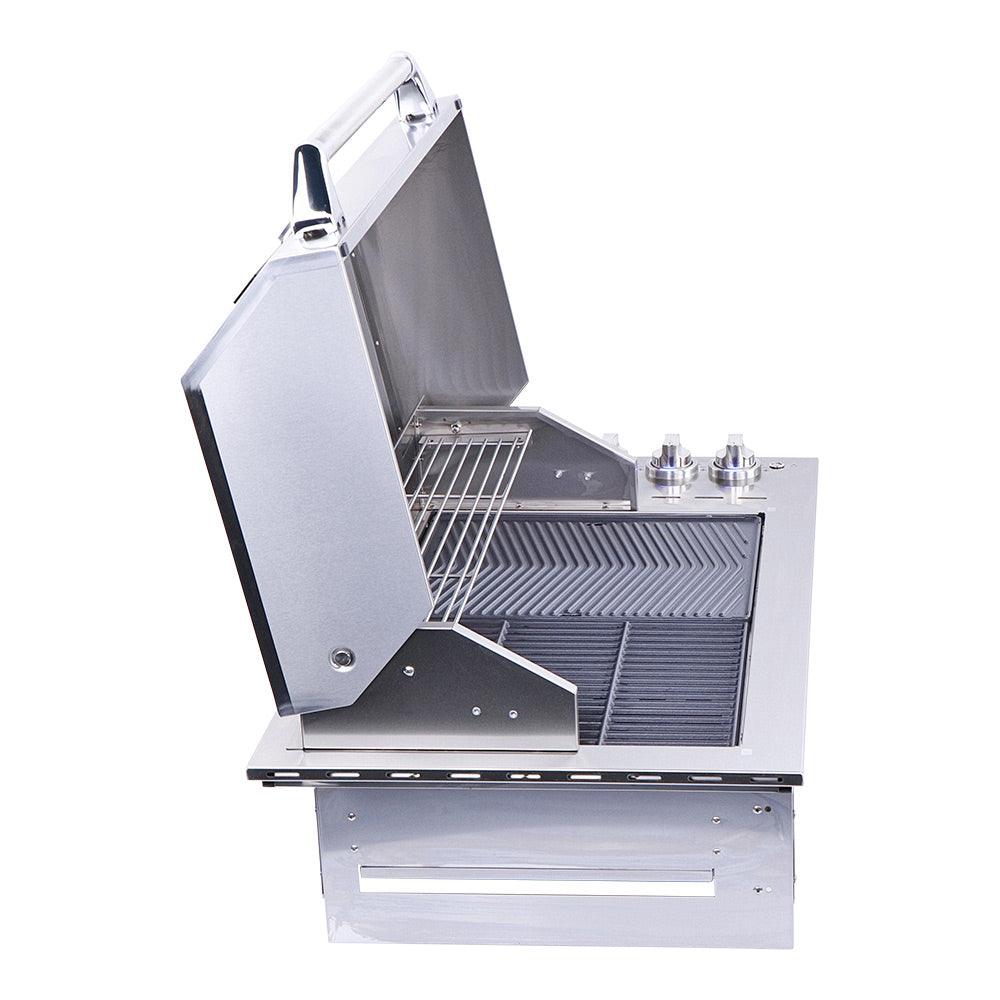

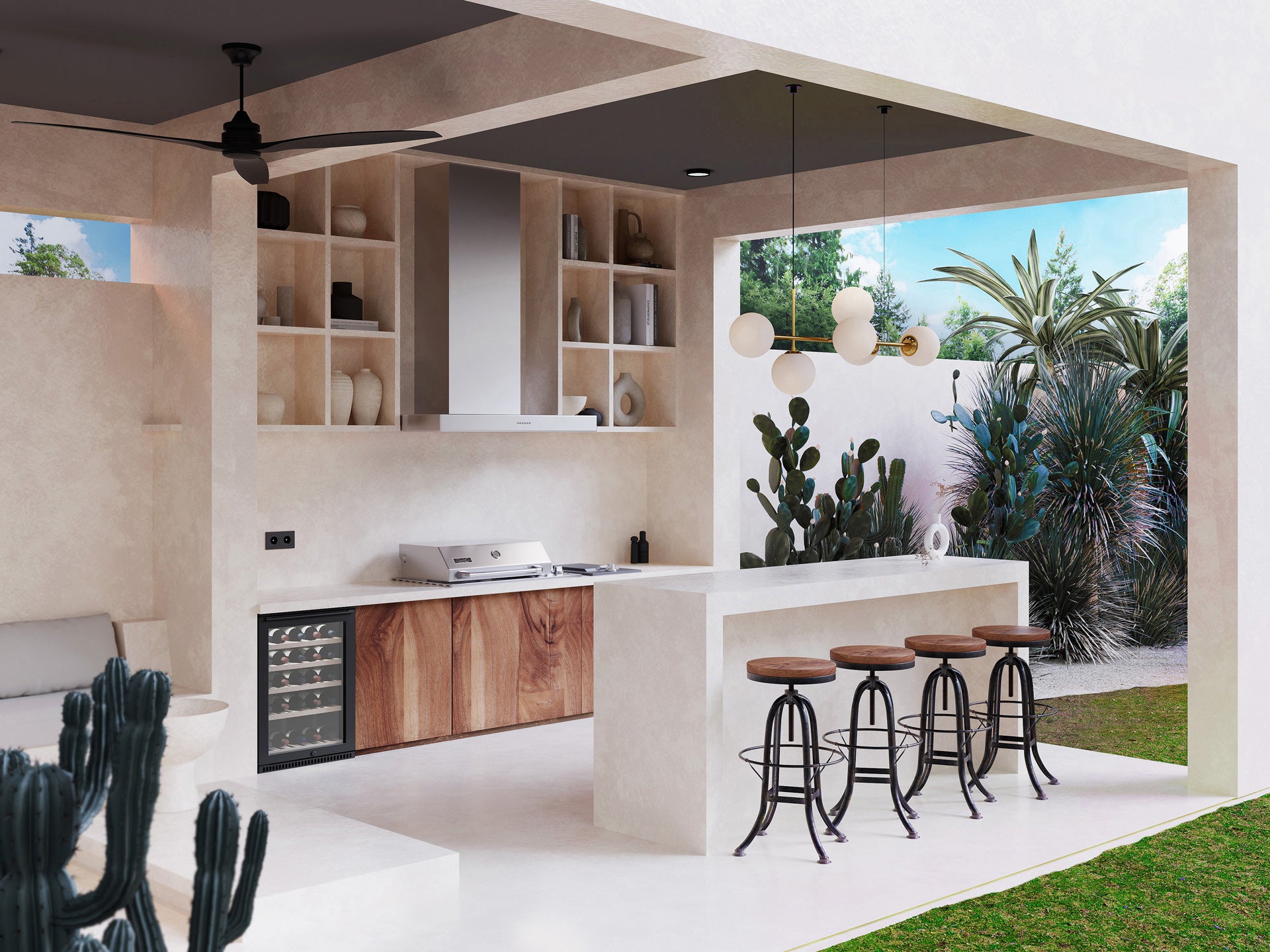

The new range of Smart drop-in gas BBQs provide a modern, stylish look for your outdoor kitchen. The clever design drops into a benchtop cutout to give a streamlined look, complimented by the slimline stainless steel hood. This design style is perfect for modern outdoor alfresco settings.

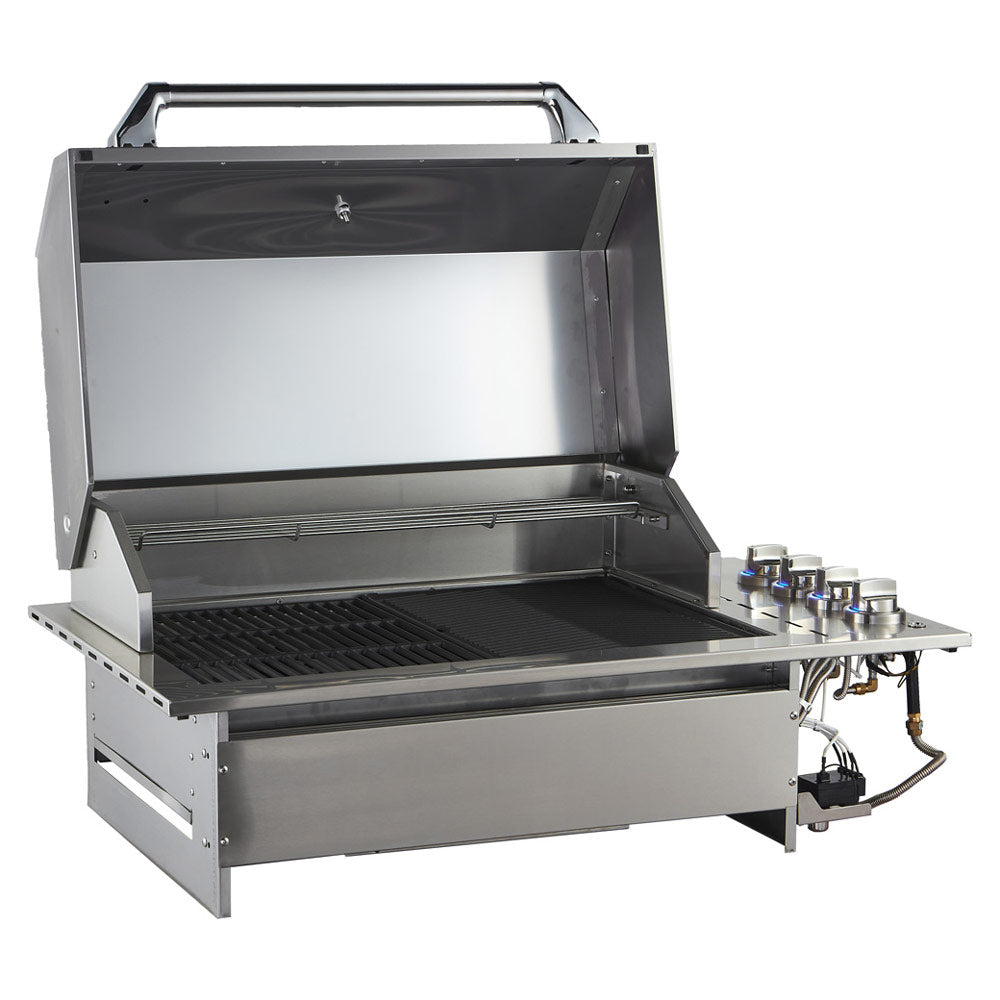

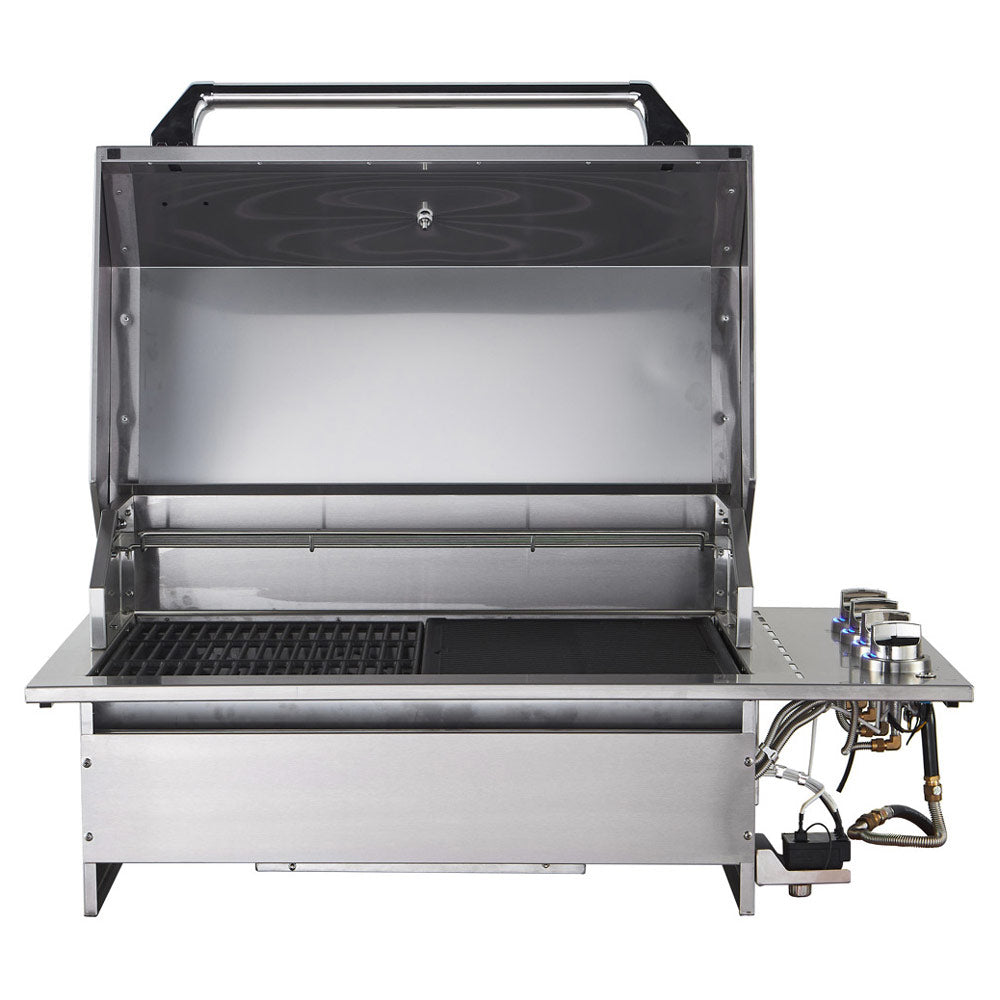

Manufactured from a high-quality 304-grade stainless steel finish this drop-in gas BBQ by Smart is the ideal grilling companion for your backyard. Featuring a 4 burner grilling surface with two grill plates made from cast iron it can handle a barbecue feast of any size.

This product comes with a three-year manufacturer warranty covering any faults or defects which may occur during this period.

Product Features

Features & Benefits

  • Stylish Drop-In Design: Gives your outdoor alfresco space a modern, classy finish as the BBQ drops down into the benchtop of your cabinetry. The slimline enclosed hood helps to give a more low-profile look to the BBQ while still providing the option for roast-style cooking with the hood closed.

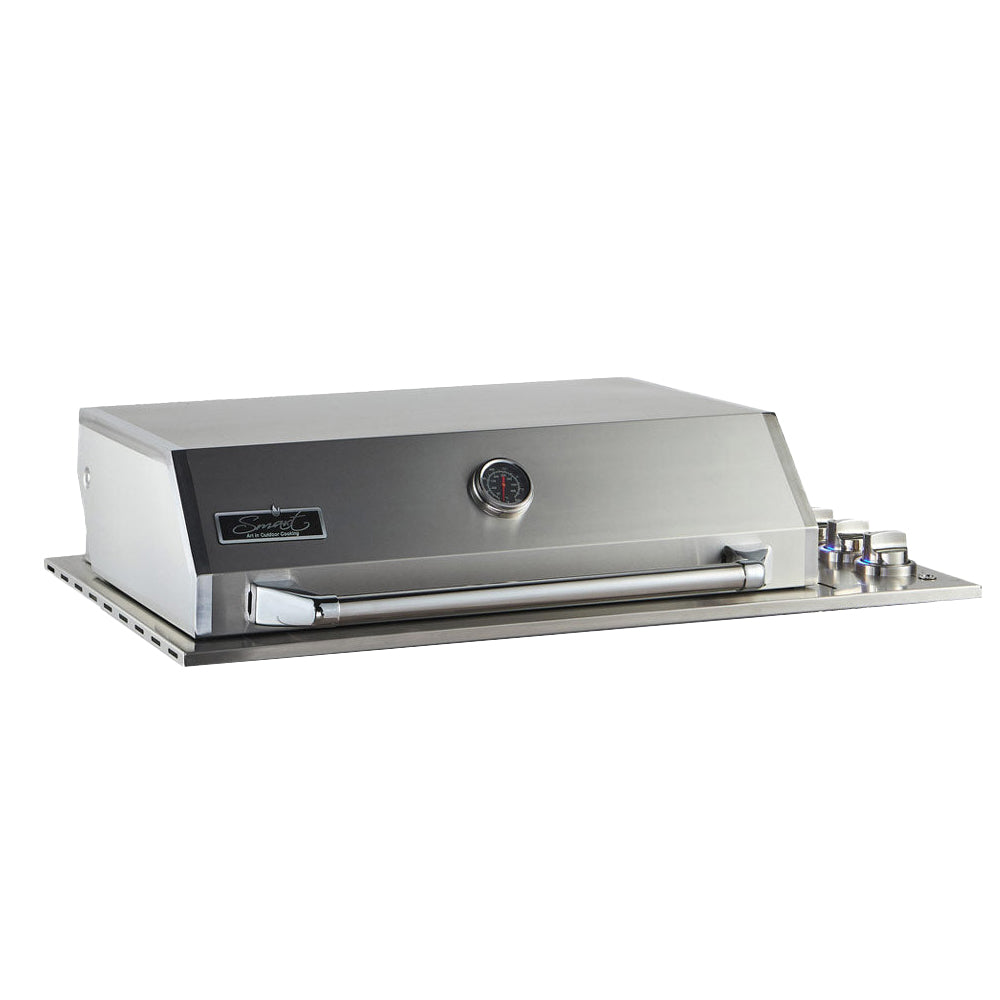

  • Slimline Double-Skinned Hood: The slimline hood helps to compliment the drop-in style of the BBQ. The double layer within the hood offers improved insulation and heat retention when cooking with the hood closed resulting in improved efficiency and a more steady temperature.

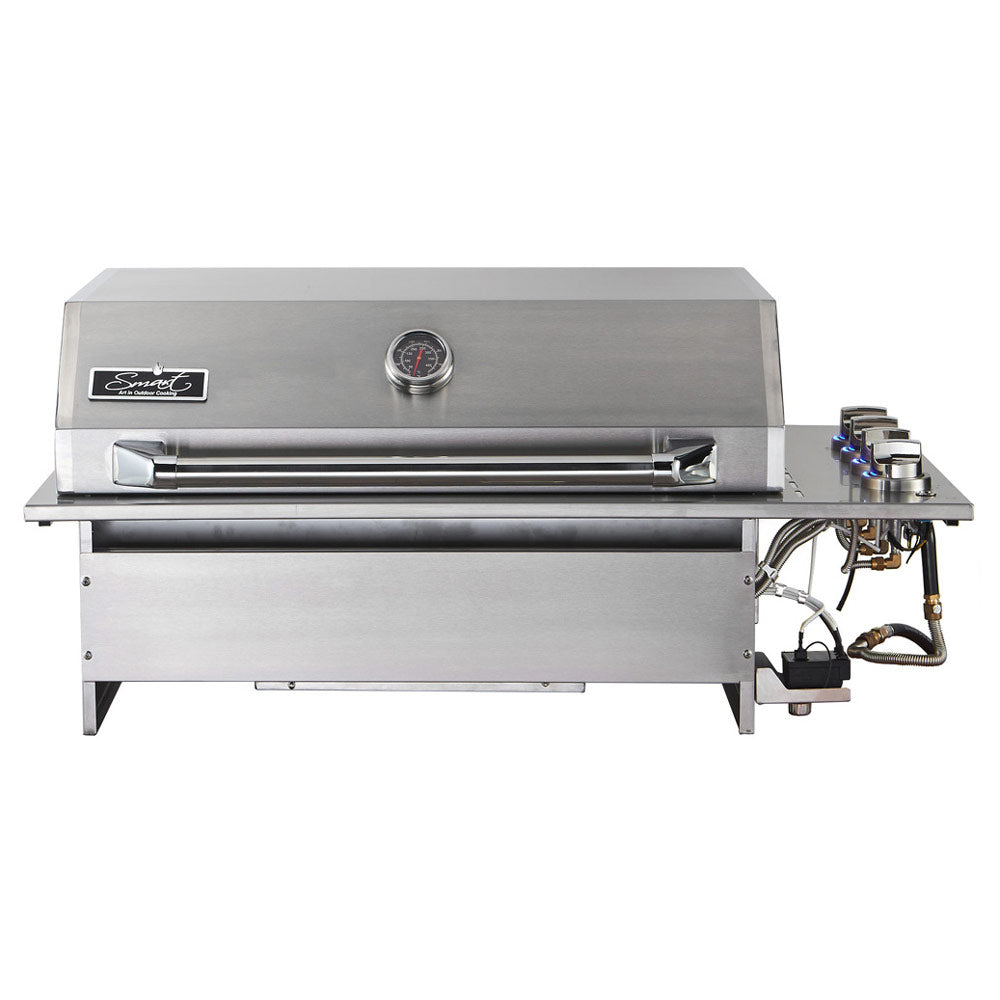

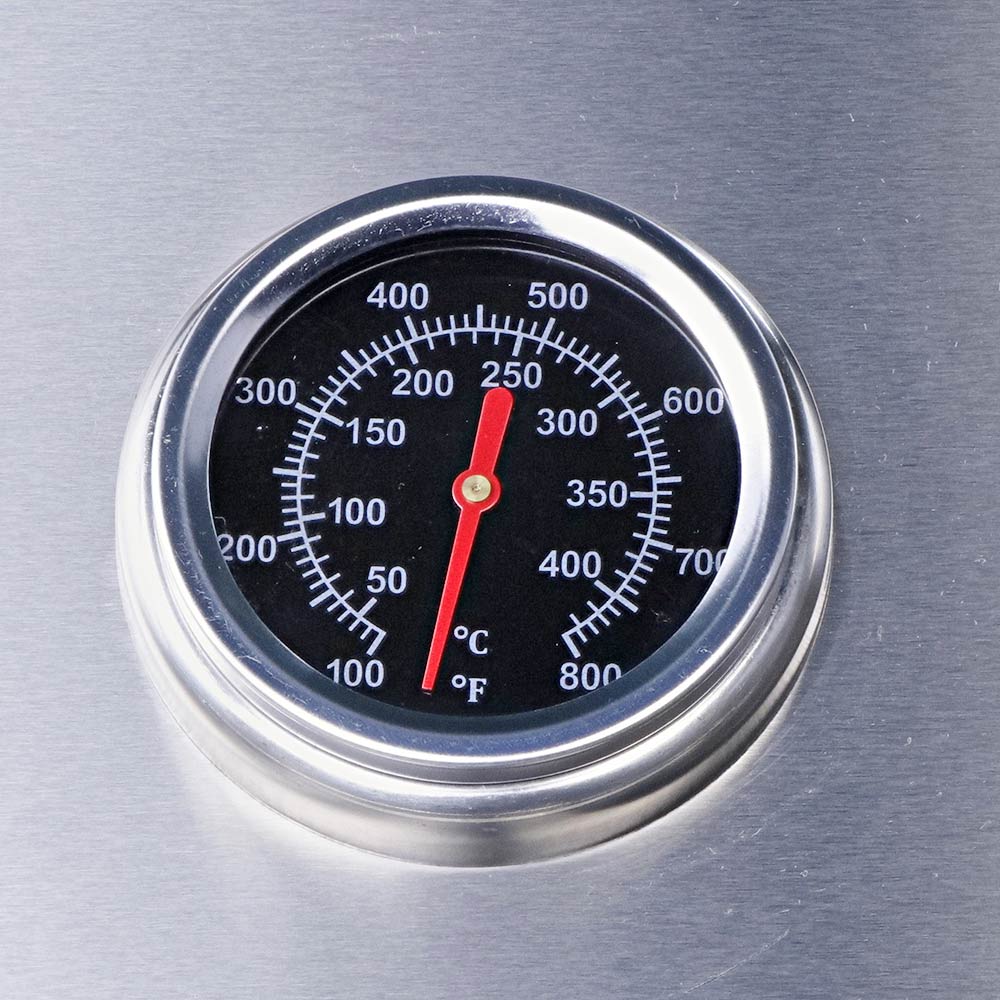

  • Integrated Thermostat: A thermostat is cleverly integrated into the enclosed hood helping to provide an accurate reading of the internal temperature within the BBQ cavity for roasting with the hood closed.
  • High-Quality Burners With Even Heat Dispersion: 4 x high-quality tube burners are made from 304-grade stainless steel. The 304-grade stainless steel flame tamers assist with even heat distribution while reducing flare-ups, helping to provide an excellent grilling experience.
  • 304 Grade Stainless Steel: Made of high-grade stainless steel which is very resistant to heat and salt helping to avoid corrosion and decay within the harsh Australian climate.
  • Stainless Steel Warming Rack: Provides additional space within the BBQ for already-cooked food that you want to keep warm.

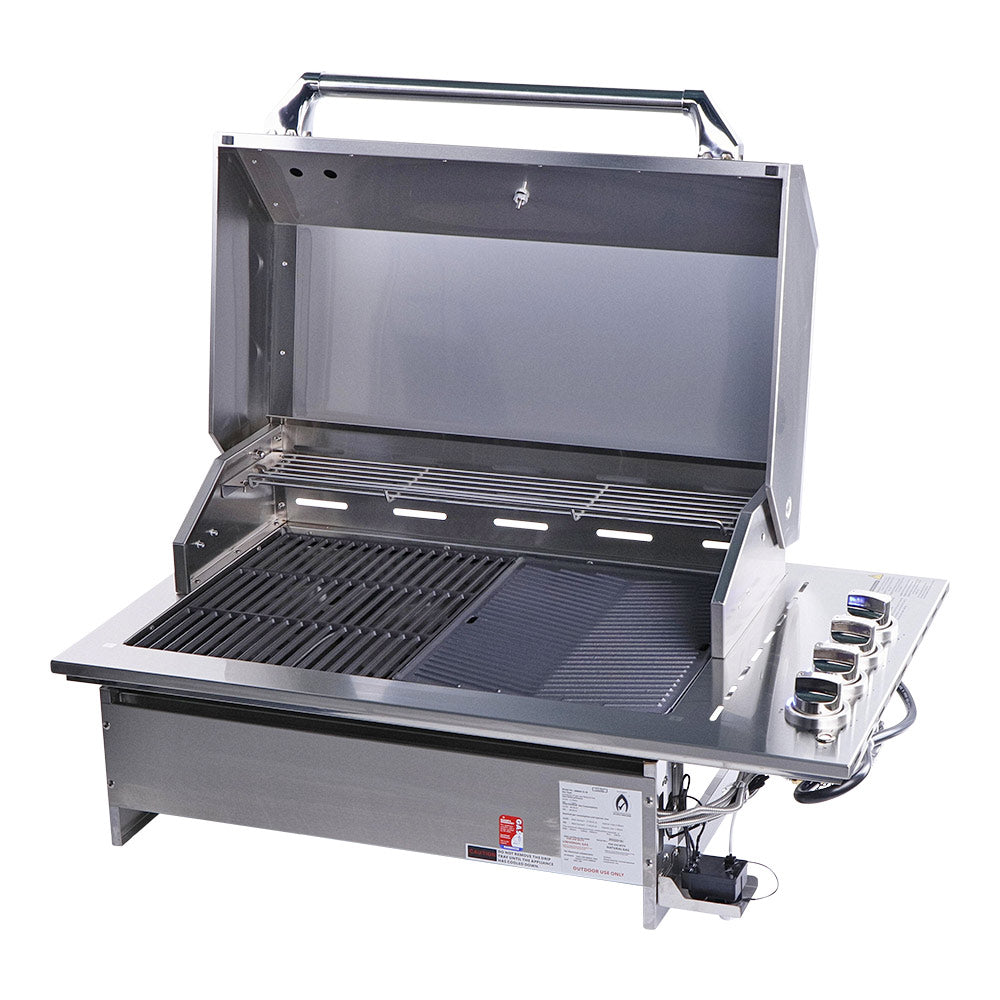

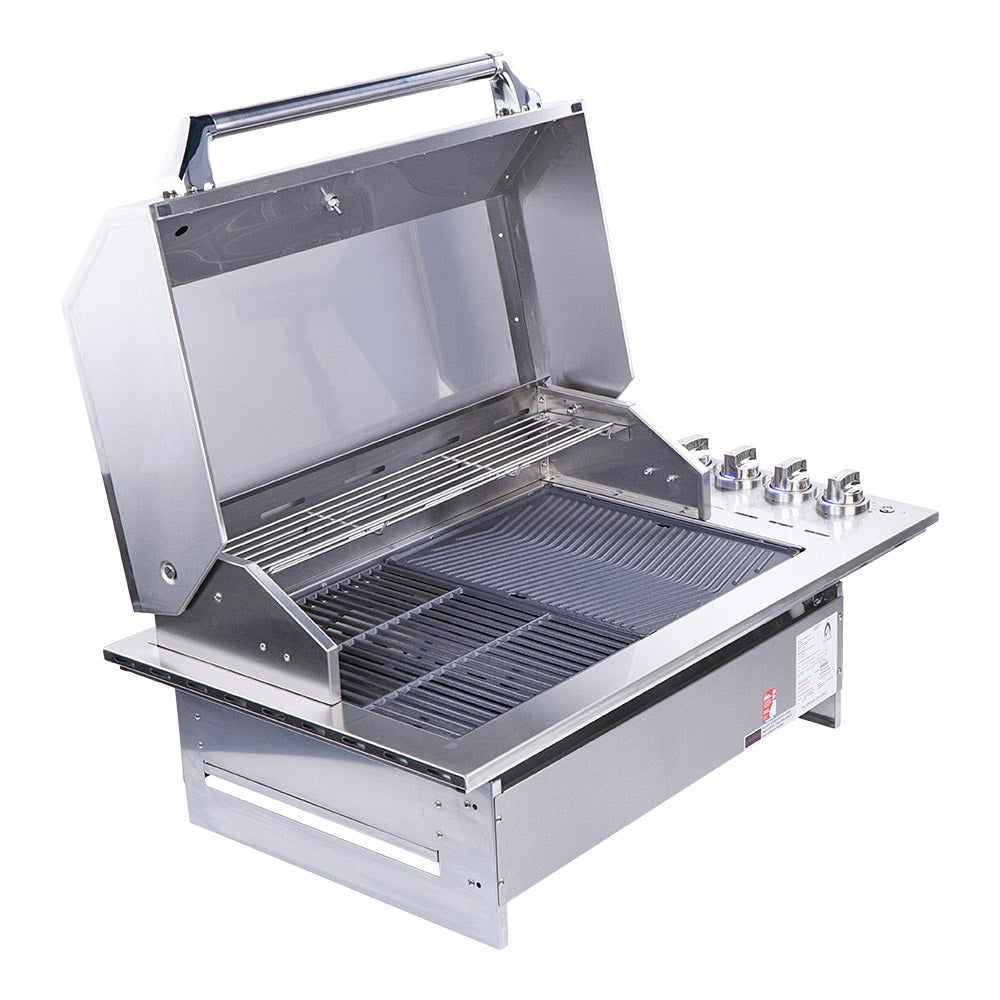

  • Cast Iron Grill Plates: The BBQ features 1 x open grill plate and 1 x solid/flat grill plate which is reversible for either a smooth or ridged finish. Both plates are made from quality cast iron that allows for even heat distribution and heat retention making them ideal for searing & grilling.
  • Comfort Electronic Ignition System: Safe and easy Comfort Electronic Ignition System can be lit without the use of flammable and explosive matches and lighters.

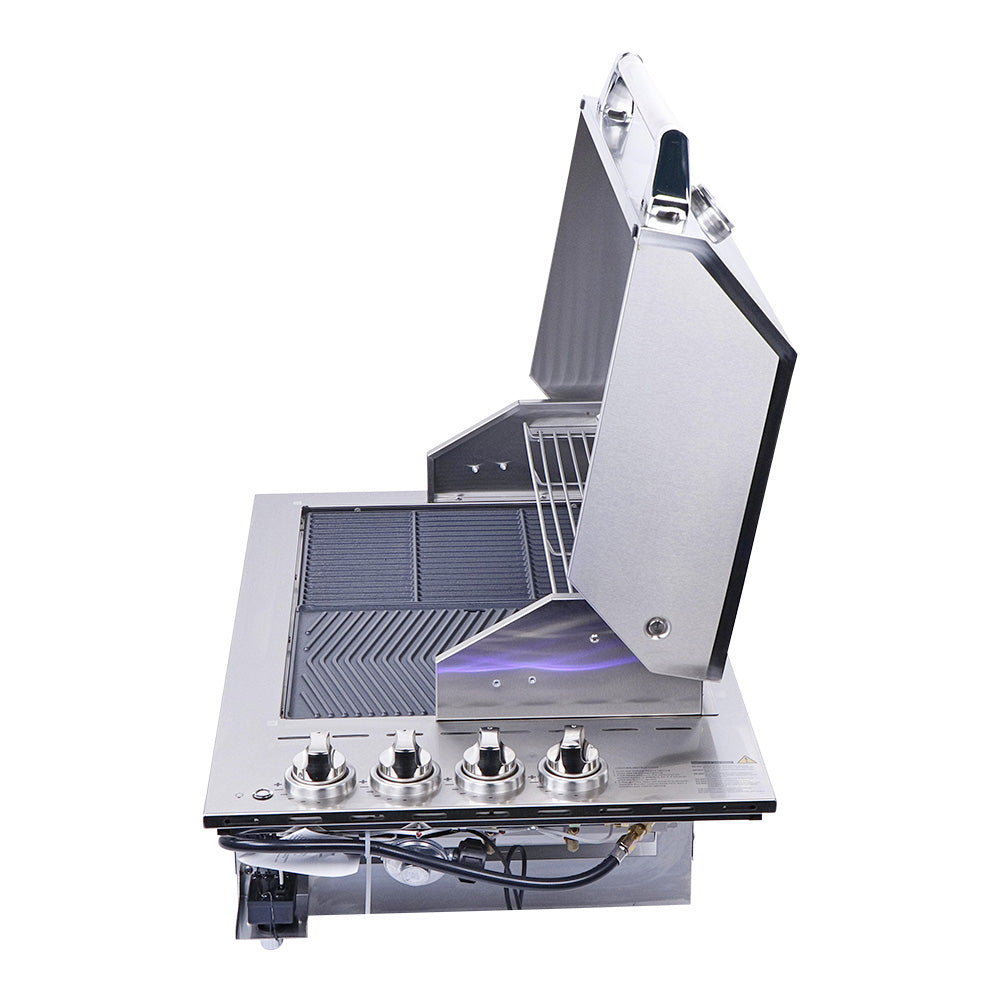

  • Ergonomic Controls: The ergonomic controls are conveniently located to the side of the BBQ helping to maximise the grilling surface with power level indicators.
  • Blue LED Lighting on Controls: Each of the BBQ’s control knobs features long-lasting & energy-efficient blue LED lights helping to make nighttime entertaining super easy and safe.

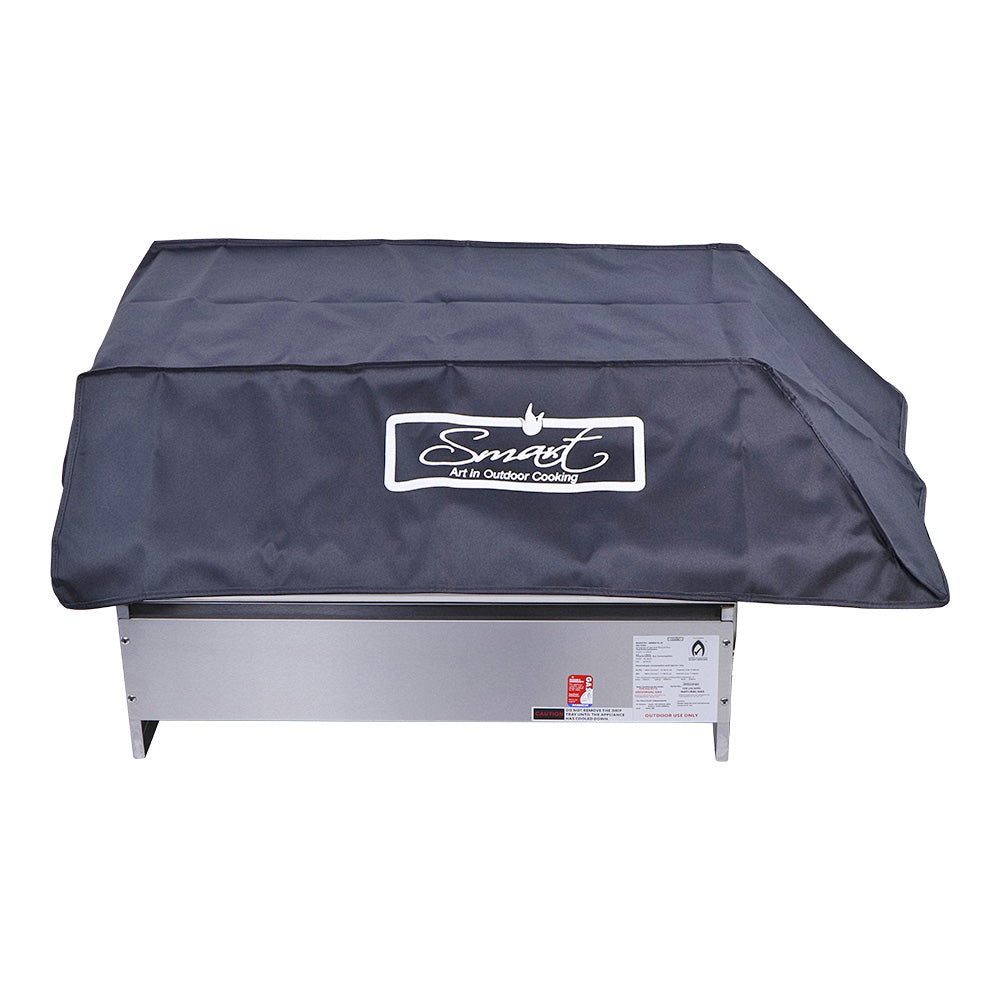

  • UV Protected Cover: Your barbecue will not only last longer but will also look better when protected with the weatherproof cover provided as a standard additional extra.
  • Oil Management System: Makes cleaning simple as fats and oils drip down into the removable grease cup at the bottom. The draining channels can be easily accessed for cleaning.
  • LPG Jets Fitted. Can Be Converted To Natural Gas: The BBQ comes equipped for LPG out of the box and can be converted for usage with Natural Gas by an authorised professional. (Conversion kit needs to be purchased separately).
  • Included Extras: Weather Proof UV Protected Cover, S/Steel Warming Rack & Removable Grease Drip Tray.
Product Specifications

Technical Specifications

  • Product Code: 4000DG-SL-SS
  • AGA Gas Certificate Number: 9106G
  • Fuel: LPG (can be converted to Natural Gas with a conversion kit - check user manual)
  • BBQ Construction (Hood, Control Panel & Chassis): 304 Grade Stainless Steel
  • Tube Burners: 304 Grade Stainless Steel
  • Flame Tamers: 304 Grade Stainless Steel
  • Double Skinned Hood: Yes
  • Total Gas Consumption (LPG): 48mj/h (12mj/hr each burner)
  • Total Gas Consumption (Natural Gas): 44mh/h (11mj/hr each burner)
  • Motorised Rotisserie: No
  • Controls Lighting: Blue LED Lighting on Each Knob
  • Internal BBQ Cavity Lighting: No
  • Ignition: Confort Electronic Ignition System
  • Flame Failure Safety Shut-Off: No (Should Not Be Installed Indoors)
  • Total Cooking Area: (w) 750mm x (d) 450mm
  • Grill Plate Materials: Cast Iron
  • Open Grill Plate Dimensions: (w) 350mm x (d) 450mm - quantity of 1 supplied
  • Solid Flat Grill Plate Dimensions: (w) 350mm x (d) 450mm - quantity of 1 supplied

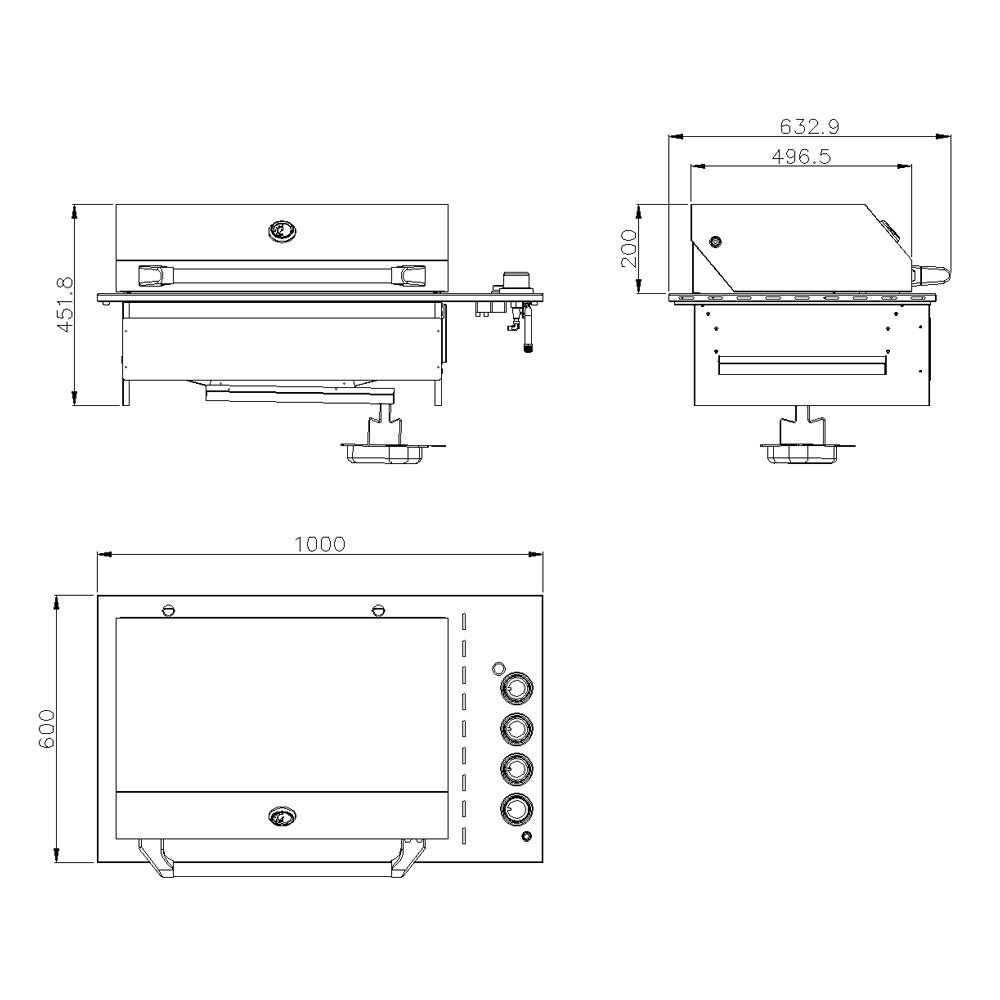

  • Total Product Dimensions (With Hood Closed): (w) 1000mm x (d) 635mm x (h) 581mm - including grease cup
Installation Dimensions

Installation & Cut-Out Dimensions

Do not cut your cabinetry or benchtops until you have physically received your Smart BBQ to ensure optimum results. The cutout dimensions provided are indicative only as requirements for each installation will vary. Upon receiving your Smart BBQ, individually measure the relevant sections to ensure optimum fittings.

It is essential to thoroughly read the user manual (provided below) before installation or use of this BBQ.

The cabinetry must allow front access underneath the BBQ to allow access to clean and remove the drip cup.

The benchtop/substrate must be able to support the weight of the BBQ which is mentioned in the technical specifications. We recommend a minimum benchtop thickness of 20mm. Consult with your stone/cabinet maker.

If an LPG gas bottle is stored in the enclosure under the BBQ, it must be isolated from the BBQ unit with a non-combustible panel. The enclosure must comply with the requirements of AS/NZS 5601.1 - this is to allow any residual gas to escape from the cavity.

Benchtop Cut Out Dimensions: (w) 980mm x (d) 580mm + Minimum Height Clearance of 390mm Below The Benchtop + Minimum Benchtop Thickness of 20mm

Gas Conversion

Natural Gas Conversion

The Smart Gas BBQ range all come ready for use with an LPG gas bottle out of the box, but can be converted to supply through your natural gas line.

This will require a natural gas conversion kit which can be purchased from retailers or directly from our website.

Our jets are universal in that you use the same jets in LPG and NG setting. What is needed is an internal adjustment to change the gas flow to use the same jets. This will need to be done by a licensed gas fitter or plumber. On how this is done, is shown in the user manual step by step.

This will need to be done by a licensed gas fitter or plumber.

Your gas fitter or plumber will remove the jets that are currently set up for LPG and do an internal adjustment to the gas flow when you want to run NG to your BBQ.

Step-by-step instructions can be found in the product manual.

Please note that our kits do not come with with a female bayonet fitting for wall connection - this will need to be supplied by your gas fitter or plumber.
