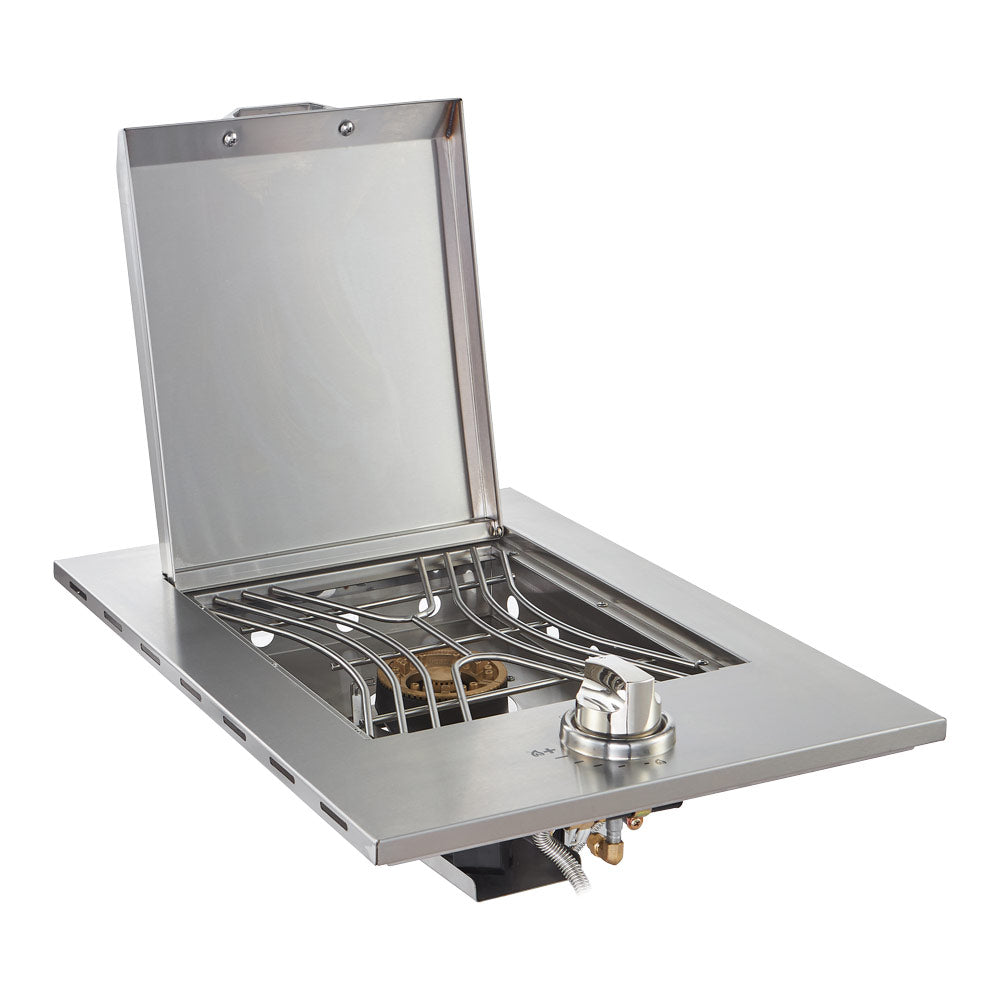

Smart Drop-In Side Burner Gas BBQ Cooktop in Stainless Steel (SMA-DSG0010-SS)

$499.00
$499.00 $499.00
Save 0
  • SKU:
    SMA-DSG0010-SS
Ask a question Share

The new range of Smart drop-in gas BBQs provides a modern, stylish look for your outdoor kitchen. The clever design drops into a benchtop cut-out to give a streamlined look, making it ideal to match up to your Smart drop-in or built-in gas BBQ. This design style is perfect for modern outdoor alfresco settings.

Manufactured from a high-quality 304-grade stainless steel finish this drop-in gas BBQ cooktop by Smart is the ideal grilling companion for your backyard. It features a high-quality cast iron tube burner with a Comfort Electronic Ignition System for ease of use.

This product comes with a three-year manufacturer warranty covering any faults or defects which may occur during this period.

Product Features

Features & Benefits

  • Stylish Drop-In Design: Gives your outdoor alfresco space a modern, classy finish as the BBQ drops down into the benchtop of your cabinetry. The slimline enclosed hood shape helps to give a more low-profile look to the BBQ.
  • High-Quality Cast Iron Tube Burner: Durable & high-powered gas cooktop that is capable of reaching high cooking temperatures in your outdoor alfresco setting.
  • 304 Grade Stainless Steel: Made of high-grade stainless steel that is very resistant to heat and salt, helping to avoid corrosion and decay within the harsh Australian climate.
  • LPG Jets Fitted. Can Be Converted To Natural Gas: The BBQ comes equipped for LPG out of the box and can be converted for usage with Natural Gas by an authorised professional. (Conversion kit needs to be purchased separately)
  • Ergonomic Controls: The ergonomic controls are conveniently located at the front of the BBQ, helping to maximise the grilling surface with power level indicators.
  • Comfort Electronic Ignition System: Safe and easy Comfort Electronic Ignition System can be lit without the use of flammable and explosive matches and lighters
Product Specifications

Technical Specifications

  • Product Code: SMA-DSG0010-SS
  • AGA Gas Certificate Number: 9106G
  • Fuel: LPG (can be converted to Natural Gas with a conversion kit - check user manual)
  • BBQ Cooktop Construction: 304 Grade Stainless Steel
  • Tube Burners: Cast Iron
  • Total Gas Consumption (LPG): 11.5mj/h
  • Total Gas Consumption (Natural Gas): 12.5mh/h
  • Ignition: Comfort Ignition System
  • Flame Failure Safety Shut-Off: No
  • Lighting: No

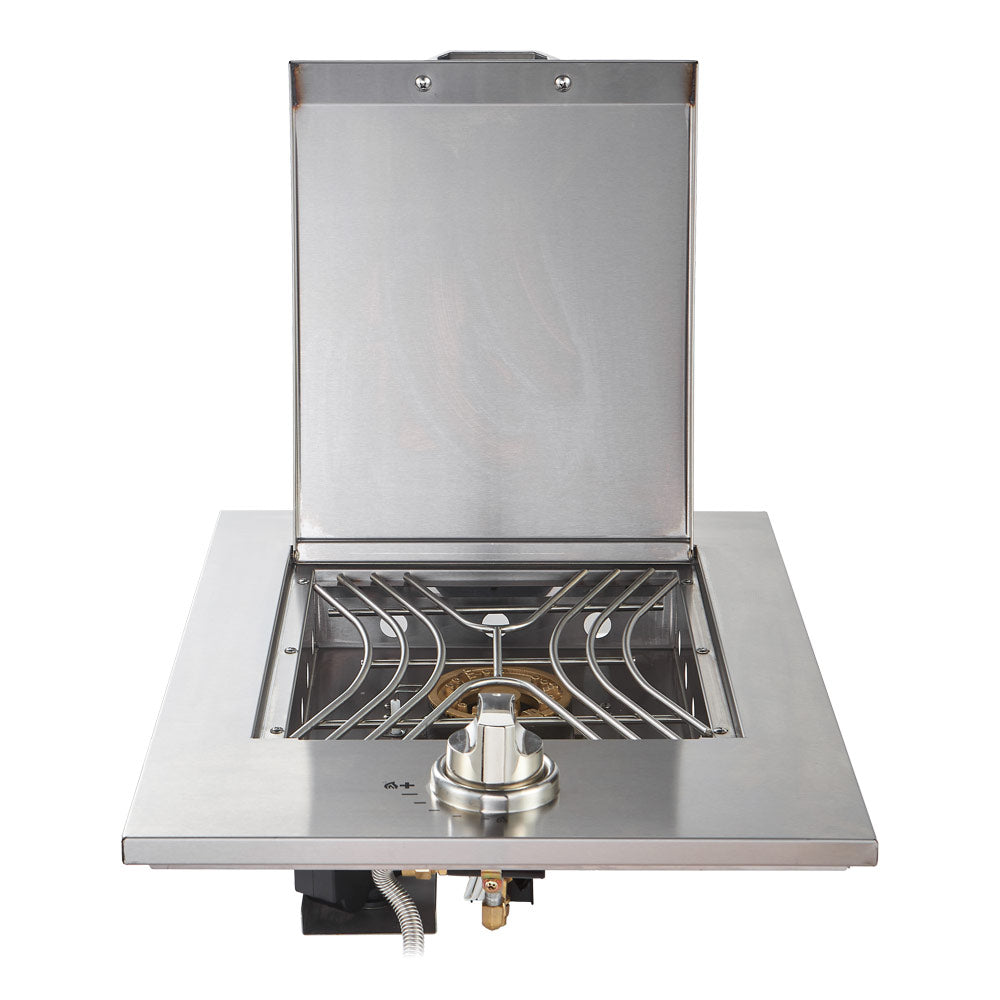

  • Total Product Dimensions (With Lid Open): (w) 425mm x (d) 600mm x (h) mm

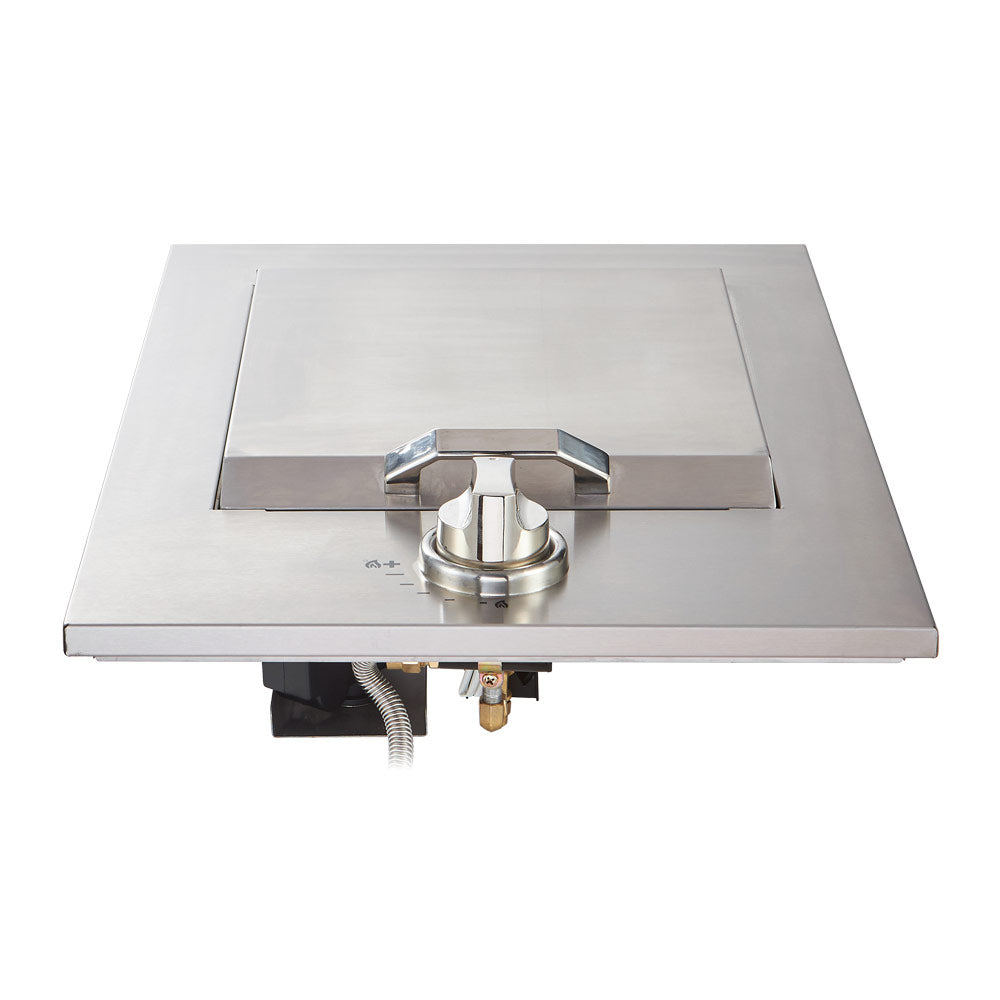

  • Total Product Dimensions (With Lid Closed): (w) 425mm x (d) 600mm x (h) 178.5mm
  • Recommended Cut-Out Dimensions: (w) 405mm (d) 580mm x (h) >164mm (must allow minimum 50mm clearance below cooktop)
Installation Dimensions

Product & Cut Out Dimensions

Do not cut your cabinetry or benchtops until you have physically received your Smart Side Burner to ensure optimum results. The cutout dimensions provided on are indicative only as requirements for each installation will vary. Upon receiving your Smart Side Burner, individually measure the relevant sections to ensure optimum fittings.

Gas Conversion

Natural Gas Conversion

The Smart Gas BBQ range, including the side burner are compatible with a standard LPG gas bottles out of the box, but can be converted to supply through your natural gas line.

This will require a natural gas conversion kit which can be purchased from retailers or directly from our website.

Our jets are universal in that you use the same jets in LPG and NG setting. What is needed is an internal adjustment to change the gas flow to use the same jets. This will need to be done by a licensed gas fitter or plumber. On how this is done, is shown in the user manual step by step.

This will need to be done by a licensed gas fitter or plumber.

Your gas fitter or plumber will remove the jets that are currently set up for LPG and do an internal adjustment to the gas flow when you want to run NG to your BBQ.

Step-by-step instructions can be found in the product manual.

Please note that our kits do not come with with a female bayonet fitting for wall connection - this will need to be supplied by your gas fitter or plumber.
